Features and Benefits

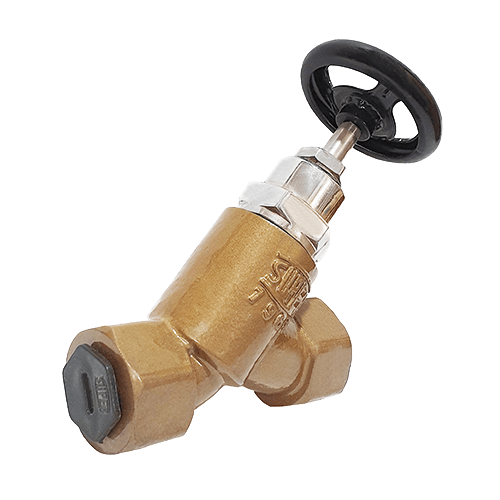

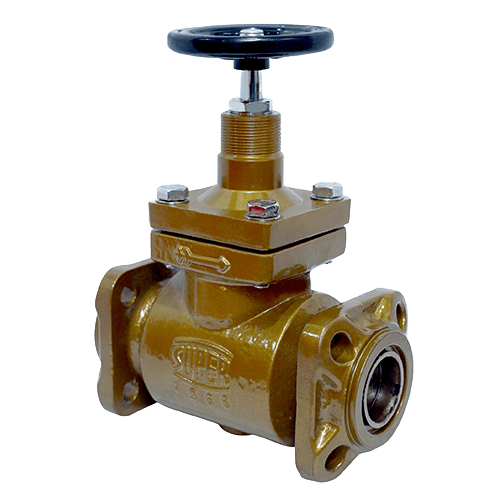

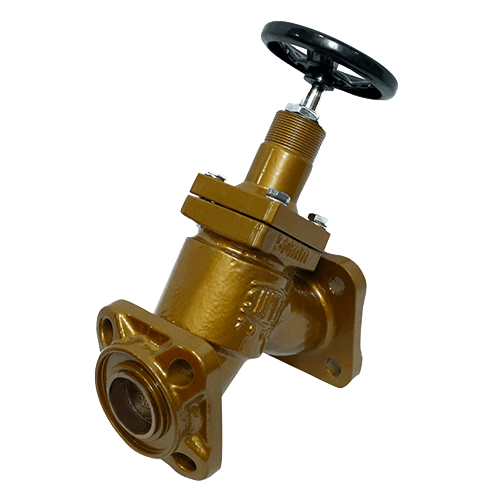

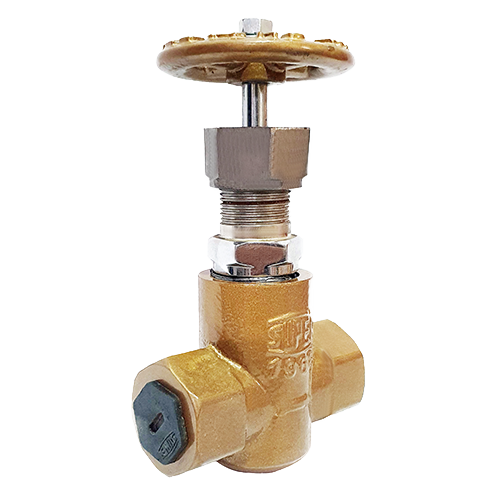

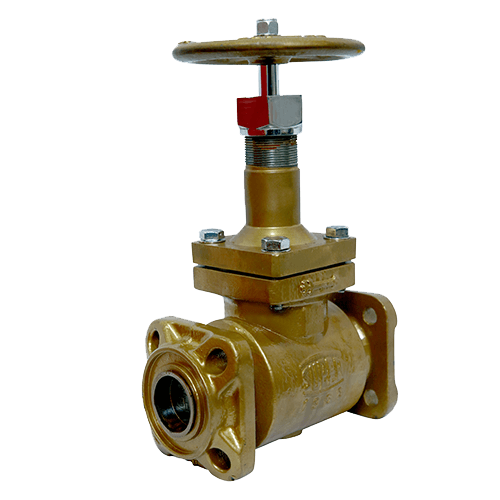

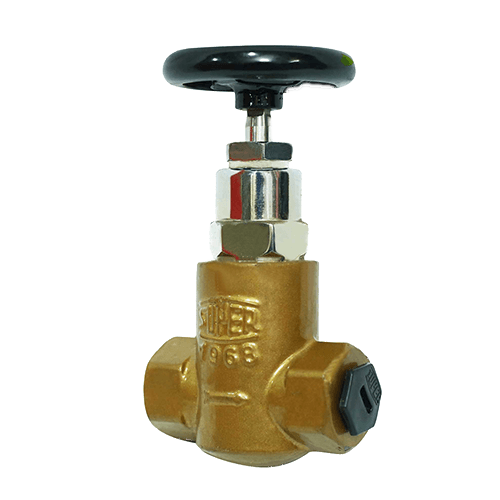

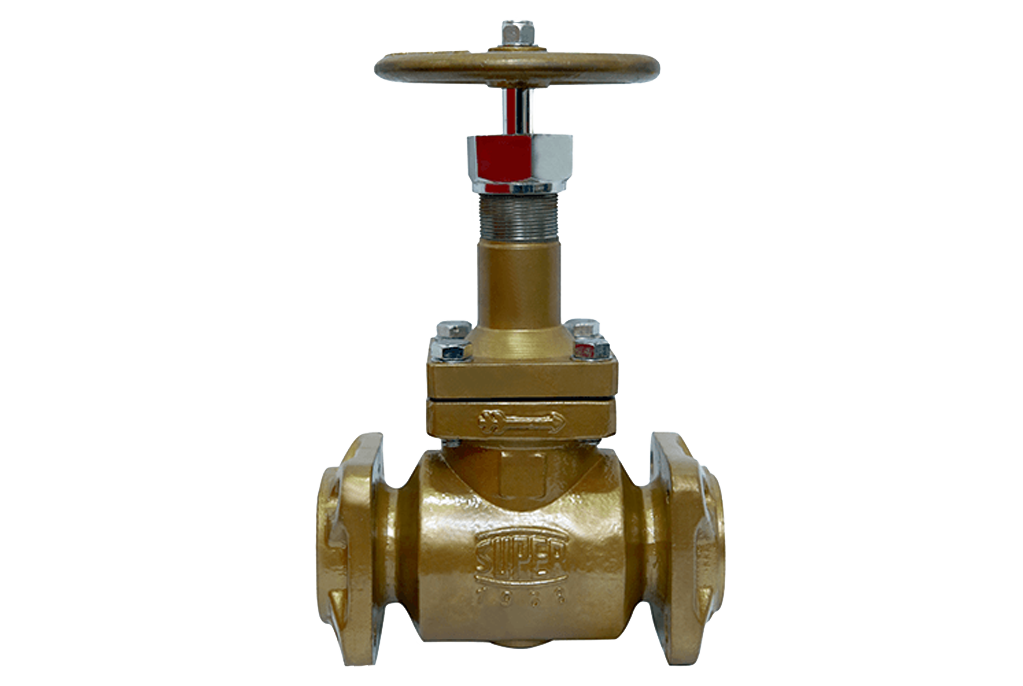

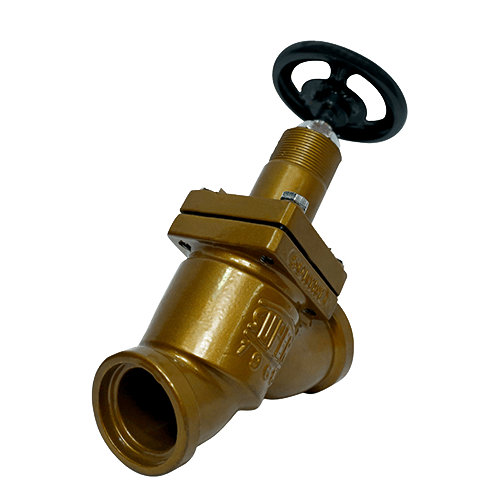

• “SUPER” 1968 shut off valves are available in angle way and straight way versions
• Internal PTFE back seating design to replace seal while the valve is still operating
• Non-asbestos gaskets
• Safe working pressure: 400 psig (27 bar)
• Temperature range: -60°F to +240°F (-51°C to +116°C)
• The valve is designed to withstand high internal pressure. However, the piping system in general should be designed to avoid liquid traps and reduce the risk of hydraulic pressure caused by thermal expansion
• Extended neck provides greater insulation clearance
• Individual pressure testing of each valve
• All components are manufactured on CNC machines
• High tensile bolts, used to tighten the bonnet, give extra life to the valves
• All valves are painted with premium quality paint that protects valves in all weather conditions
• Suitable for R717 (Ammonia), R744(CO2), HCFC & HFC, chemical and petrochemical applications
• The temperature range of the packaging gland ensures perfect tightness in the whole temperature range
• Packing glands are equipped with a scraper ring to prevent penetration of dirt and ice into the packing gland
• Re-tighten gland nut in case of external leak

Variants
