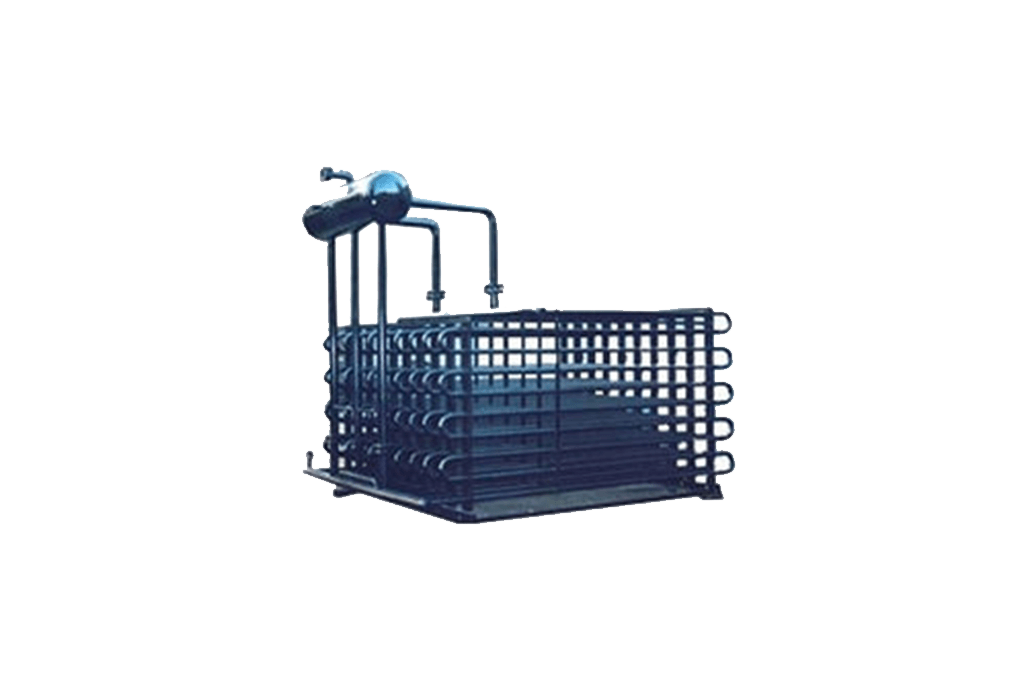

Ice Bank Coil

Trunk type V shaped coils are made of 32 NB (1-1/4″) M.S.ERW heavy class pipes with suitable headers at top and bottom. These are used for ice freezing in block ice plants. Coils are tested at 31 Kg./cm2 (450 psi) after fabrication coils are supplied in Red oxide primer finish.

Ice Bank Coils are made of Heavy Duty pipes mostly of 32mm (1-1/4″) NB. The coils are fabricated with minimum welding. They are supported with heavy duty angle Iron stands, Pressure tested at a pressure of 31 kg/cm2 (450psi) hydraulically.

Types Available

Construction:

• Conventional Design
• Spiral Type
• Cross Flow Type
• Custom Built

Finish:

• Red Oxide Primer & Aluminium Paint
• Spray Galvanized
• Hot Dip Galvanized

Range:

Any size can be supplied as per customer’s requirement.

Advantages:

• Sturdy Construction
• Long Lasting
• Plant can be operated during non-peak hours for building and storage of ice, and it can be utilized during peak hours.
