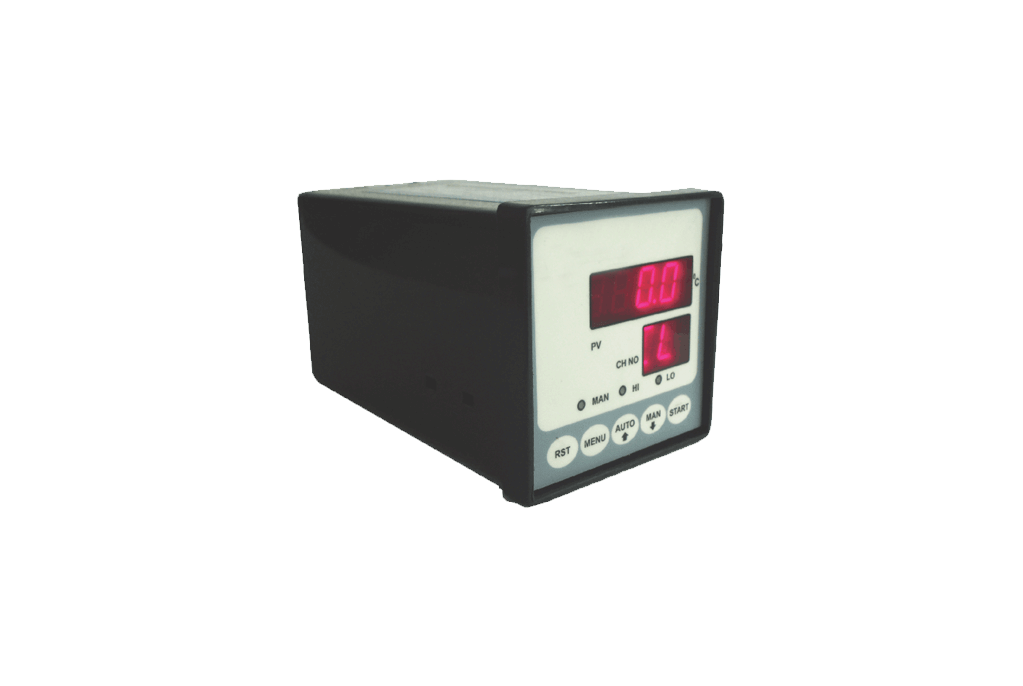

Microcontroller Based Multi Function Temprature Controllers Type Mtic

We have introduced new series of Microcontroller based controllers. The new range of MTIC has many additional features however, packed in same enclosure. Hence can be used to replace existing TIC range of Controllers

Standard DIN Enclosure 96 X 96 X 150 mm Simple to use key board Dual 7 Segment LED Display Multiple Set Point options e.g. Single, Two, Three, Four, Five Range – 100°C to +200°C, Resolution 0.1°C, Accuracy ±0.2°C

Hysteresis (Neutral Zone) adjustable from 0.1°C to 10°C

Calibration adjustable ±20°C

Relay output

Optional time delay for Relay Output

Optional RS232 / RS485 port for communication

Optional software available for PC monitoring
