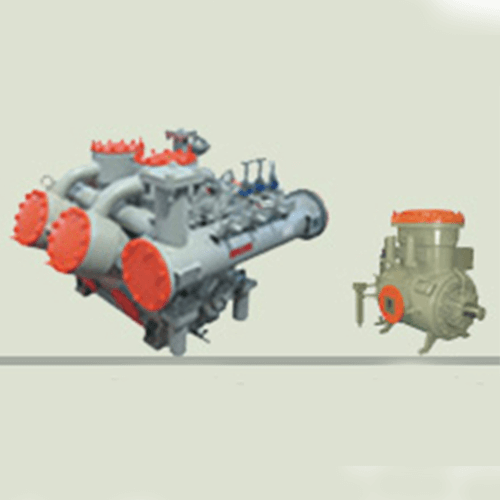

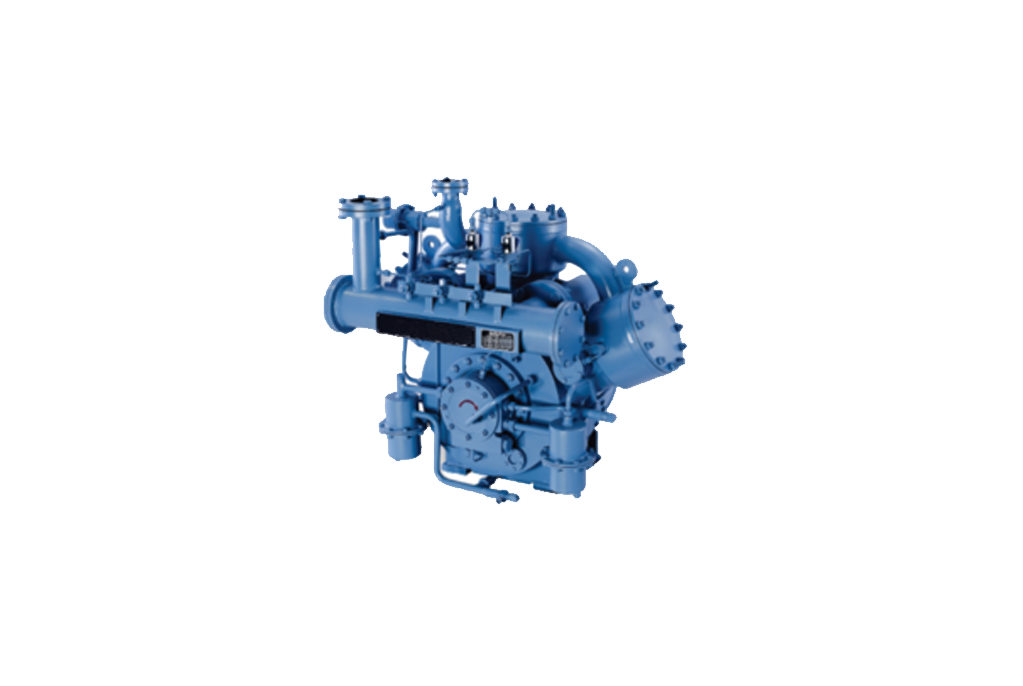

Refrigeration Compressors

Heavy Duty Industrial Refrigeration Compressors Suitable for Round the Clock Operation. Compressors sustainable for R717 (Ammonia), R22 & other HFC's. Capacities from 32 TR (112 kW) to 577 TR( 2019 kW) for Ammonia as refrigerant at +10oC evaporating to +40oC Condensing temp (subcooling & superheat at 0oC) & Compressor speed 1000 rpm.

Model : 2 to 12 cylinders in single & two stage.

Applications :

• These Reciprocating Compressors are most suitable for industrial refrigeration & low temperature applications
• They are designed to operate with ammonia, halocarbons, & other refrigerants
• Ideally suitable for continuous duty, process refrigeration, liquefaction plants, ice plants, cold storage etc

Get a Quote

Contact us

SEND MESSAGE

Close

Features:

• All Steel Fabricated Crankcase
• Modular Construction
• Protection Against Liquid Hammer
• Efficient Heat Dissipation
• Quick Service Access for Maintenance
• Provision for Cylinder Jacket Cooling

Accessories:

• Drive Set: 'V' Belt drives (Flywheel, Motor pulley, Belts) for a wide range of standard speeds and Direct drive (Flexible Space saver coupling with flywheel)
• Base frame, Slide rails for motor with foundation bolts
• Stop valves (shut-off) for suction & discharge lines
• Electrically operated solenoid valves for capacity control
• Pressure gauges & Safety pressure cut-outs, Crankcase heater & Oil separator
• Equalizer connection for parallel operating compressors
• Interstage cooling systems to suit two-stage compressors
• Built-in cooling water manifold
• PLC Control (Optional)
